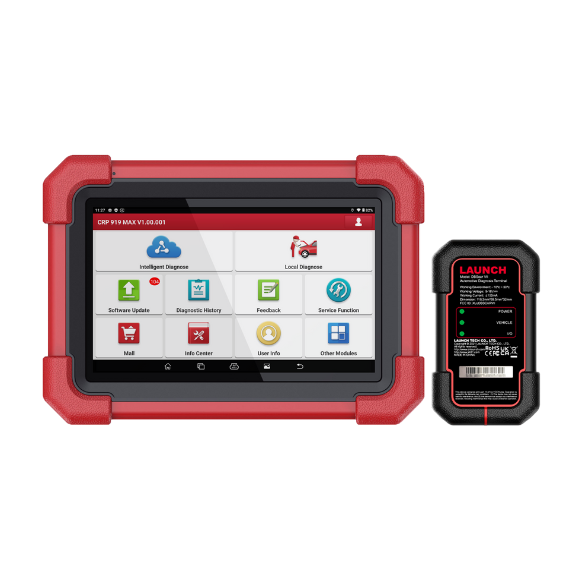

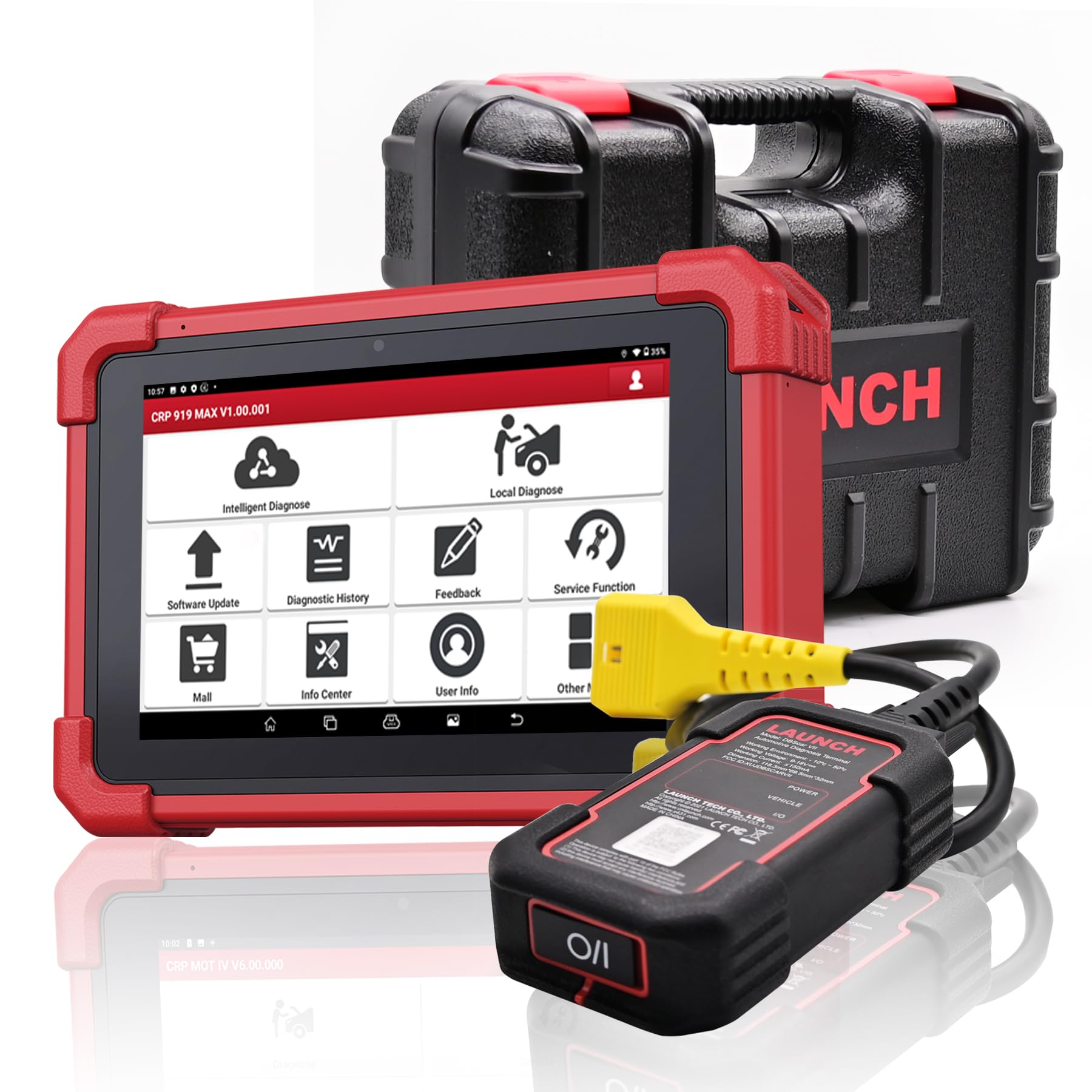

LAUNCH CRP 919 MAX

The LAUNCH CRP 919 MAX is a professional-grade OBD2 diagnostic tablet designed for technicians and advanced DIYers who need full-system coverage and fast, accurate vehicle diagnostics. Running on Android 10.0 with a bright 7-inch touchscreen, this powerful scan tool supports reading/clearing DTCs, live data streaming, active tests, bi-directional control, coding, and module matching—all with OE-level precision.

It offers wide vehicle coverage (over 98% of U.S., Asian, and European cars from 1996+) and supports modern communication protocols including CAN, CAN-FD, and DoIP (extra DoIP cable required). Intelligent diagnostics automatically identify the VIN, access all systems, and save historical records, while one-click updates keep software and firmware current.

The CRP 919 MAX is compatible with four optional add-on modules—VSP-600, X-431 TSGUN, BST360 Bluetooth Battery Tester, and O2-2 Scopebox—for extended functionality such as tire pressure, battery health, and oscilloscope measurements. Built-in repair information and training videos help technicians quickly locate and fix issues.

Key Benefits:

• Full-system diagnostics: read/clear codes, live data, bi-directional tests, coding & adaptations

• Wide OE-level coverage for 1996+ U.S., Asian, and European vehicles

• Intelligent auto-VIN scan and historical record storage

• Supports CAN, CAN-FD, and DoIP protocols

• One-click software & firmware updates with automatic filtering of frequently used modules

• Compatible with VSP-600, X-431 TSGUN, BST360, and O2-2 Scopebox

• Built-in repair guides and training videos

Technical Specifications:

• OS: Android 10.0

• Display: 7″ touchscreen, 1024×600

• CPU: 2.0 GHz Quad-core

• RAM / Storage: 4 GB / 64 GB

• Battery: 47.88 Wh (7.6 V, 6300 mAh)

• Camera: 8 MP rear

• Wireless: Dual-band Wi-Fi 2.4 GHz / 5 GHz

• Interfaces: USB Type-A ×1, Type-C ×1

• Dimensions / Weight: 218 × 154 × 39.5 mm / 900 g

Compatibility:

• Works with most OBD2/EOBD-compliant vehicles worldwide (cars and light trucks)

• Supports U.S., Asian, and European makes from 1996 and newer

Installation & Use:

• Plug the OBD2 connector into the vehicle’s diagnostic port

• Follow on-screen prompts for auto-VIN recognition and system scan

• Download model-specific updates via Wi-Fi with one-click upgrade
